The parts of a toilet, a seemingly simple mechanism, are surprisingly complex. This post delves into the inner workings of your porcelain throne, revealing the fascinating components that make flushing a reality. From the tank’s intricate valve system to the bowl’s precise shape, each part plays a crucial role in the efficient removal of waste.
We’ll explore the functions of various components like the fill valve, flush valve, and overflow tube. Understanding these parts not only enhances your appreciation for this everyday marvel but also provides valuable insights for troubleshooting potential problems and maintaining optimal performance.
Introduction to Toilet Components
The humble toilet, a seemingly simple fixture, is a marvel of engineering. Its efficient flushing mechanism relies on a precise interplay of components, each with a specific role in ensuring proper function. Understanding these parts and their functions is crucial for maintaining a clean and hygienic environment, and for troubleshooting potential issues. Let’s delve into the anatomy of this essential bathroom appliance.The intricate design of a toilet is not merely a matter of aesthetics; it is a meticulously crafted system.
Each part plays a vital role in the overall performance of the flushing mechanism. This system must handle the removal of waste in a sanitary and efficient manner. A thorough understanding of each component empowers users to maintain the system’s efficacy and identify potential problems.
Ever wondered about the inner workings of a toilet? From the tank to the flush valve, each part plays a crucial role. Just like a garden needs careful consideration, a well-functioning toilet relies on precise engineering. Knowing which plants to grow near your tomatoes can significantly improve their yield, and there are some surprising pairings! For instance, basil and tomatoes make a great team, but did you know that marigolds and nasturtiums are also fantastic companion plants?
Companion plants for tomatoes can really boost your harvest. So, next time you’re plumbing a new toilet, remember that a bit of careful planning can make all the difference, just like selecting the right companion plants for your tomatoes.
Toilet Tank Components
The toilet tank houses the water supply and the mechanisms that initiate the flushing process. The tank’s components work together to control water volume and initiate the flushing cycle. This section details the key components and their functions.
- Fill Valve: This valve regulates the water level within the tank. It automatically shuts off the water supply when the tank reaches the desired level, preventing overflow. Proper functioning of the fill valve is critical for maintaining a consistent water level, which is essential for a reliable flush. A faulty fill valve can lead to a tank that is either under- or overfilled.
- Flush Valve (or Ballcock): This valve releases the water stored in the tank into the bowl. The flush valve is activated by the flush lever, and its design is crucial for controlling the amount of water released. A properly functioning flush valve is essential for a powerful and efficient flush, which will effectively remove waste from the bowl. A faulty valve may result in weak or inconsistent flushes.
- Flush Lever (or Chain): This is the user-activated component that triggers the release of water. The lever’s connection to the flush valve ensures a reliable and predictable flush cycle. Proper attachment and alignment of the flush lever is crucial for smooth operation and prevents leaks.
- Overflow Tube: This tube allows excess water to drain from the tank if the fill valve malfunctions. This important safety feature prevents water damage. The overflow tube ensures that water doesn’t overflow and cause a potential problem.
Toilet Bowl Components, The parts of a toilet
The toilet bowl is the receptacle for waste and the primary area where the flushing action takes place. Understanding its components is vital for proper functionality.
- Bowl: The bowl is the main container for waste. Its shape and design are engineered to efficiently direct water and waste to the drain. The bowl’s shape is key to preventing splashes and effectively removing waste. The quality of the material used in the bowl also contributes to its durability.
- Trap: The trap is a U-shaped bend in the pipe that connects the bowl to the drain. This trap creates a water seal that prevents sewer gases from entering the home. This critical seal is crucial for maintaining a hygienic environment and preventing odors from entering the living space. The trap’s integrity is vital to preventing sewer gas buildup.
- Drain: This is the exit point for waste. The drain pipe connects the trap to the sewer system. The efficiency of the drain is crucial to preventing clogs and maintaining proper water flow. The drainpipe’s size and material affect its ability to handle waste effectively.

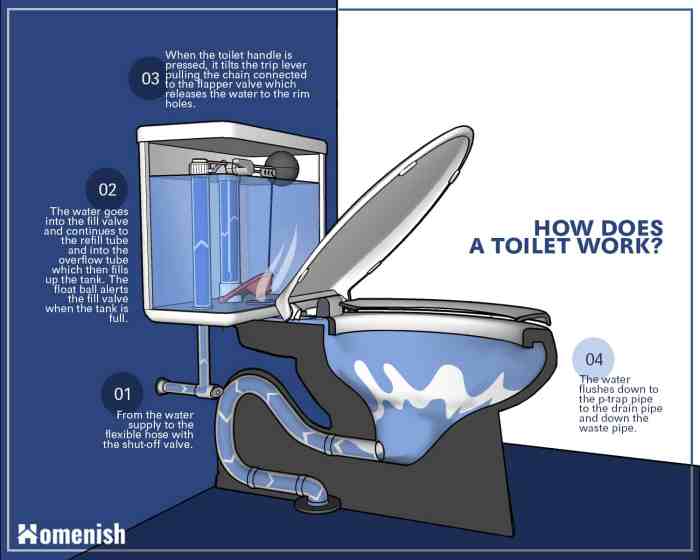

Diagram of a Toilet
| Component | Description |
|---|---|
| Tank | Houses the water supply and flushing mechanisms. |
| Bowl | Receptacle for waste and flushing action. |
| Trap | U-shaped bend preventing sewer gases. |
| Flush Valve | Releases water into the bowl. |
| Fill Valve | Controls water level in the tank. |
| Flush Lever | User-activated component for flushing. |
| Overflow Tube | Safety feature preventing overflow. |
| Drain | Exit point for waste. |
A simple diagram of a toilet, illustrating these parts, would show the tank above the bowl, connected by the pipes. The flush lever is shown connected to the flush valve, and the fill valve is inside the tank. The trap is visible as a curved pipe leading from the bowl to the drain. The overflow tube is also displayed as a pipe extending from the tank.
Tank Components
The tank, the hidden heart of your toilet, houses the crucial mechanisms that initiate the flushing process. Understanding these components is key to troubleshooting potential issues and maintaining optimal performance. This section delves into the intricate workings of the tank, from the fill valve to the flush mechanism.The tank’s components are intricately designed to ensure a smooth and efficient flushing cycle.
Proper functioning depends on each component performing its specific task flawlessly, from filling the tank to initiating the discharge.
Fill Valve Function
The fill valve is responsible for precisely controlling the water level within the tank. It regulates the inflow of water until the desired level is reached, ensuring consistent flushing volume. A properly functioning fill valve prevents the tank from overfilling, conserving water and maintaining the appropriate water level for each flush.
Flush Valve Operation
The flush valve, often coupled with a flapper or chain assembly, initiates the emptying of the tank. It connects directly to the toilet bowl, ensuring a smooth and complete transfer of water from the tank to the bowl. The design and placement of the flush valve are critical for efficient water discharge.
Overflow Tube Importance
The overflow tube serves as a crucial safety mechanism. It prevents water from overflowing into the toilet bowl if the fill valve malfunctions or is blocked. This prevents water damage to the surrounding areas and ensures the tank’s proper operation.
Flapper or Chain Assembly Function
The flapper or chain assembly acts as a crucial switch, triggering the flushing action. When the flapper is lifted, or the chain is pulled, the water in the tank is released into the bowl. The assembly is the final piece of the puzzle, activating the entire flushing system. The mechanism’s design influences the flush efficiency and the user experience.
Tank Mechanism Types
Different types of tank mechanisms exist, each with its own set of advantages and disadvantages. Understanding these differences is essential for choosing the right replacement part for your specific needs.
Comparison of Tank Types
| Component | Function | Pros | Cons |
|---|---|---|---|
| Ballcock | The ballcock, a traditional mechanism, uses a ball to control water flow. | Simple design, often less expensive. | Prone to leaks and less water-efficient than float valves. Can be difficult to adjust for optimal water level. |
| Float Valve | The float valve uses a float to regulate water level. Water fills the tank until the float rises to a predetermined height. | More water-efficient, typically less prone to leaks than ballcocks, often easier to adjust for desired water level. | Can be more expensive than ballcocks. More complex design. |
Bowl Components
The toilet bowl, often overlooked, plays a crucial role in the entire flushing system. It’s the receptacle for waste, and its design dictates how effectively waste is handled and sewer gases are kept out. Understanding its components and how they interact is essential to appreciating the engineering behind this seemingly simple fixture.The bowl itself is a complex structure, designed to hold waste and facilitate its removal.
A key component within the bowl is the trap, a crucial part of the plumbing system.
Trap Function
The trap’s primary function is to prevent sewer gases from entering the house. This U-shaped or S-shaped bend traps a column of water, acting as a barrier against the pressure of sewer gases. This water seal prevents the unpleasant odors and potentially harmful gases from permeating the home. Proper installation and maintenance of the trap are essential to maintaining this seal.
For instance, if the water level in the trap drops too low, the seal breaks down, allowing sewer gases to enter the house.
Rim Function
The rim of the toilet bowl is a critical component. It’s designed to direct the water flow effectively, ensuring that the entire bowl is flushed thoroughly. The rim’s shape and design are carefully considered to direct the water stream towards the waste, facilitating the removal of solid and liquid waste from the bowl. An improperly shaped rim can result in ineffective flushing and incomplete waste removal, potentially leading to clogging and repeated flushing.
Bowl Shape and Waste Removal
The shape of the bowl significantly impacts the efficiency of waste removal. Modern bowls are typically designed with a smooth, rounded interior to minimize turbulence and promote efficient water flow. This helps to break down solid waste, and the water carries it efficiently into the trap. The shape also aids in preventing splashing and the potential for clogging.
An uneven or poorly designed bowl shape can lead to inefficient waste removal, requiring more water or potentially leading to clogging issues.
Overflow Holes
Overflow holes are a safety mechanism incorporated into the bowl design. They prevent the bowl from overflowing if a clog occurs or if more water enters the bowl than the system can handle. This is a crucial safety measure, preventing water damage and ensuring the system’s integrity.
Bowl Shapes and Sizes
Different bowl shapes and sizes affect functionality in several ways. A wider bowl often accommodates larger amounts of waste, while a narrower bowl might be more suitable for smaller spaces. Elongated bowls typically provide more space for sitting, and this can impact comfort. A variety of bowl shapes and sizes are available to meet different needs and preferences, considering the space available, usage frequency, and personal preferences.
A more compact design might be better for smaller bathrooms, while a larger, elongated bowl might be preferred in larger or more frequently used restrooms.
Connections and Plumbing: The Parts Of A Toilet
The heart of any toilet lies in its intricate plumbing system. Understanding the connections between the tank, bowl, and the surrounding infrastructure is crucial for proper function and preventing costly repairs. Efficient water delivery, waste removal, and maintaining the necessary air pressure are all vital aspects of a well-functioning toilet. This section delves into the essential plumbing components and their roles.The connections between the tank and bowl are critical for a functional toilet.
These connections facilitate the seamless transfer of water from the tank to the bowl for flushing, and the subsequent return of the water and waste to the drain system. Failure in these connections can lead to leaks, clogs, and inefficient flushing.
Essential Connections Between Tank and Bowl
The tank and bowl are connected through a series of crucial components. A supply line delivers water to the tank, and a flush valve releases it into the bowl. The siphon action of the bowl’s design, coupled with the drain line, effectively removes waste. The connection between the tank and bowl is typically made with flexible rubber or plastic hoses.
Supply Lines: Water Delivery System
Supply lines are vital for providing the necessary water to the tank for flushing. These lines are typically made of copper, CPVC, or PEX, and are connected to a water source (typically the main plumbing system). The supply line is responsible for regulating the water pressure, ensuring a consistent and efficient flush. The valve mechanism, often a ballcock or flapper valve, controls the amount of water released during the flushing process.
Ever pondered the intricate parts of a toilet? It’s more than just a porcelain throne, right? Similarly, a bedroom’s design can impact relaxation. Poor lighting, clashing colours, or cluttered spaces can totally ruin the vibe, like choosing the wrong toilet flush mechanism. Learn more about bedroom design errors that don’t promote relaxation at bedroom design errors not relaxing.
Ultimately, understanding the nuances of both the toilet’s inner workings and bedroom aesthetics helps create more peaceful spaces. A well-designed toilet, just like a well-designed bedroom, enhances the overall experience.
This control mechanism ensures optimal water usage.
Drain Line: Waste Removal
The drain line is the critical pathway for removing waste from the bowl. This line connects the toilet bowl to the main drainage system of the house. Typically made of PVC, cast iron, or clay, the drain line must be properly sized and sloped to ensure smooth waste removal and prevent clogs. The drain line is crucial for maintaining a sanitary environment and preventing sewer backups.
Vent Pipe: Maintaining Air Pressure
The vent pipe plays a crucial role in maintaining the correct air pressure within the drainage system. It provides a path for air to enter and exit the pipes, preventing pressure buildup and potential backups. Without a vent pipe, the plumbing system could become clogged, or potentially lead to unpleasant odors. The vent pipe is usually connected to the main drainage system.
Ever wondered what’s under the porcelain throne? Understanding the parts of a toilet is surprisingly fascinating, from the flush valve to the overflow tube. While we’re on the topic of things that flow, if you’re looking to add a little greenery to your home, checking out best plant delivery services is a great way to find the perfect plants for your space.
After all, a well-maintained toilet is just the beginning of a beautiful home, and plants help complete the picture. It’s all about those details!
Plumbing Materials
Different materials are used for plumbing components in toilet construction. The selection of materials is influenced by factors such as cost, durability, and resistance to corrosion.
- Copper is a highly durable and corrosion-resistant material, but it can be expensive. It is often used for supply lines where high water pressure and long-term reliability are paramount.
- CPVC (Chlorinated Polyvinyl Chloride) is a cost-effective alternative to copper, offering good durability and resistance to chemicals. It is often used for both supply lines and drain lines.
- PEX (Cross-linked Polyethylene) is a flexible material that is relatively easy to install. Its flexibility makes it ideal for areas with potential movement or expansion.
- PVC (Polyvinyl Chloride) is a common and affordable material for drain lines due to its resistance to corrosion and ease of installation.
- Cast Iron is a durable material but is heavier than other materials. It is less commonly used now, but its durability is often prized in certain applications.
- Clay is a historical material for drain lines. While durable, it is more expensive and less common in modern construction.
Connecting a Toilet
Proper installation is critical for a functional and long-lasting toilet.
- Prepare the site: Ensure the area for the toilet is level and stable, and the surrounding plumbing is accessible.
- Connect the drain line: Connect the drain pipe to the existing drainage system, ensuring proper slope for waste removal.
- Connect the water supply line: Connect the supply line to the water source, ensuring the appropriate valve is installed.
- Attach the tank and bowl: Connect the tank and bowl to the supply and drain lines, using the appropriate fittings and hardware.
- Check for leaks: Thoroughly check for leaks after installation. This step is crucial to avoid water damage.
- Test the flush: Test the toilet’s functionality to ensure proper flushing and waste removal.
Maintenance and Troubleshooting
Keeping your toilet in tip-top shape involves more than just a quick flush. Regular maintenance and knowing how to address common issues can save you time, money, and a lot of frustration. This section dives into the troubleshooting process for various toilet problems, offering practical solutions and preventative tips.Understanding the inner workings of your toilet, from the tank to the bowl, is key to effectively identifying and fixing problems.
Common issues like clogs, leaks, and slow flushing are easily addressed with the right knowledge and tools. We’ll cover identifying the source of the problem, and provide step-by-step solutions to get your toilet functioning optimally again.
Common Toilet Clogs
Toilet clogs are a frustrating reality for many homeowners. They can be caused by a variety of factors, from flushed items that shouldn’t be, to gradual buildup of debris. Knowing how to address these clogs effectively is vital for maintaining a smooth-running toilet.
- Identifying the clog: A slow drain or a complete blockage are clear indicators. Pay attention to the sound of the water draining. A gurgling sound in the pipes or a complete absence of drainage may signal a clog.
- Addressing minor clogs: Use a plunger to dislodge minor clogs. Ensure the plunger creates a tight seal against the bowl. Repeat plunging attempts as necessary.
- Dealing with stubborn clogs: For persistent clogs, consider using a plumbing snake. These tools have a flexible cable that can reach down the drain to dislodge obstructions.
Slow Flushing Toilet Troubleshooting
A slow-flushing toilet can be a nuisance, leading to wasted water and potentially indicating a larger problem. Here’s a step-by-step approach to diagnosing and fixing this issue.
- Check the tank: Ensure the flapper valve is properly seated and not damaged. A loose or broken flapper can prevent the tank from emptying completely.
- Inspect the chain: A chain that’s too long or too short can affect the flapper’s function, impacting the flushing mechanism.
- Examine the fill valve: A faulty fill valve can either fill the tank too slowly or too quickly, both contributing to a slow flush.
Identifying and Repairing Leaks
Leaks, whether in the tank or the bowl, waste water and can lead to higher water bills. Identifying and fixing these issues promptly is crucial.
- Tank leaks: Look for water dripping from the tank, or a consistently wet area around the base of the tank. A worn or cracked flapper valve is a common culprit. Replace the flapper to resolve the leak.
- Bowl leaks: A leak in the bowl often manifests as a persistent wet area around the base of the bowl or a slight constant trickle of water. Examine the wax seal and the base of the bowl for signs of leaks. A worn-out wax seal is often the cause and requires replacement.
Preventative Maintenance Tips
Proactive maintenance can significantly extend the lifespan of your toilet and prevent costly repairs.
- Regular checks: Periodically inspect the flapper valve, chain, fill valve, and wax seal for signs of wear and tear.
- Flush regularly: Regular flushing helps remove small debris that can contribute to clogs over time.
- Avoid flushing inappropriate items: Flushing items like wipes, paper towels, or feminine hygiene products can contribute to clogs.
Troubleshooting Flowchart (Slow Flush)
| Step | Action | Result |
|---|---|---|
| 1 | Check flapper valve | Is flapper valve seated properly? |
| 2 | Yes: Check chain | Is chain appropriate length? |
| 3 | Yes: Check fill valve | Is fill valve working properly? |
| 4 | Yes: Check bowl for debris | Is there any obstruction in bowl? |
| 5 | No (to any): Replace faulty component | Does toilet flush properly now? |
Epilogue
So, the next time you flush, remember the intricate dance of components working together. This detailed look at the parts of a toilet should empower you to better understand and maintain this essential fixture. From basic maintenance to identifying common issues, you’re now equipped with a newfound knowledge and appreciation for the remarkable design of your toilet.
